Panasonic PT-VMZ7ST WUXGA Short Throw Laser Projector for Golf Simulators
High-brightness short throw laser projection for premium indoor golf simulator rooms.
The Panasonic PT-VMZ7ST is a professional short throw laser projector for golf simulators, designed to deliver a bright, sharp and flexible image in indoor golf environments. With 7,000 lumens, WUXGA 1920 x 1200 resolution, LCD laser technology and a short throw ratio of 0.797-1.01:1, it is an excellent choice for premium simulator rooms where brightness, shadow reduction and installation flexibility matter.
Thanks to its short throw lens, the PT-VMZ7ST can project a large image from a shorter distance than standard throw projectors. This helps reduce player shadows, keep the projector away from the hitting zone and create a cleaner, more immersive simulator setup.
⛳ Why Choose the Panasonic PT-VMZ7ST?
- Short throw projection with a 0.797-1.01:1 throw ratio, ideal for indoor golf simulator rooms
- 7,000 lumens brightness for a powerful and vivid image in bright indoor spaces

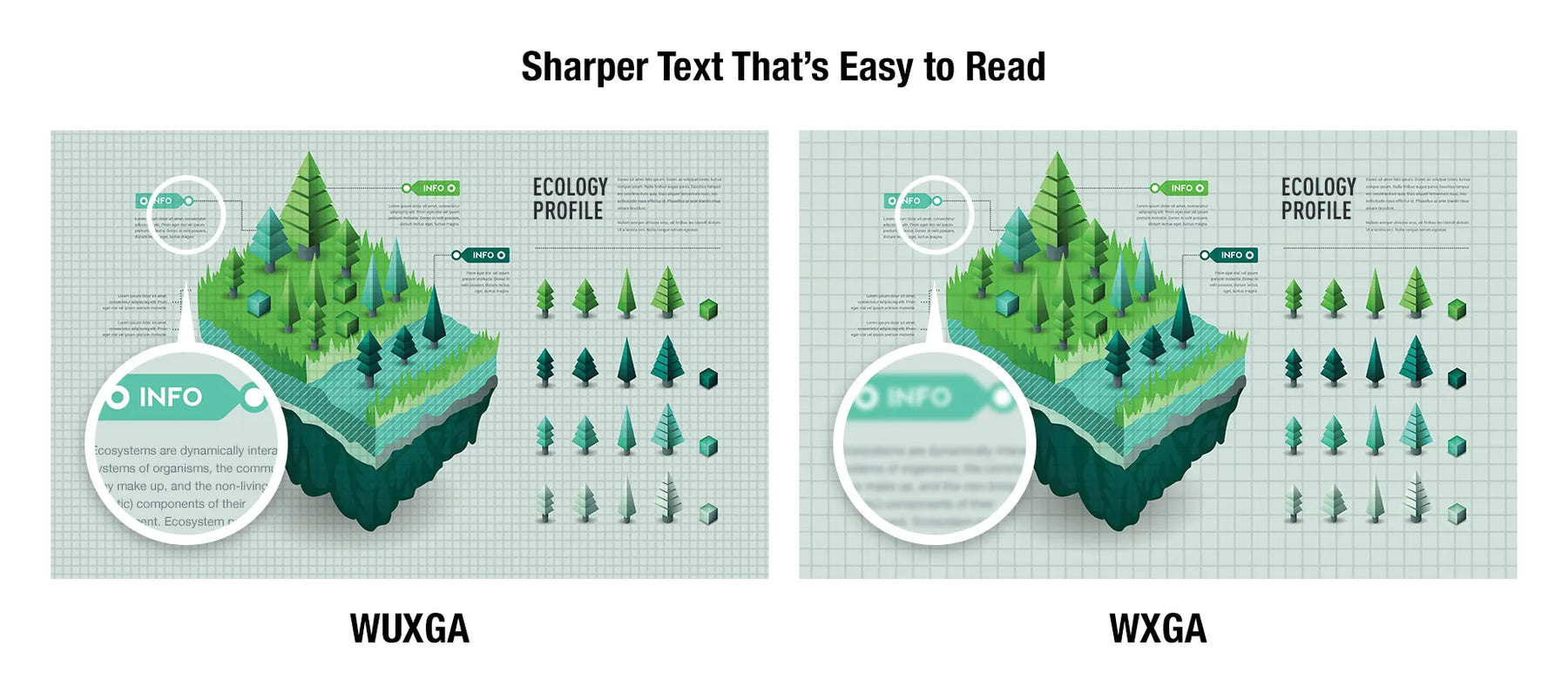

- WUXGA 1920 x 1200 resolution for sharp simulator software, course visuals and launch monitor data
- LCD laser projection technology for long-lasting, low-maintenance performance
- Vivid Green Mode to enhance green tones for golf and sports simulation
- DIGITAL LINK / HDBaseT connectivity for clean professional installations
- 1.2x optical zoom for flexible projector positioning
- Powered focus for easier adjustment after ceiling installation
- Vertical +50 % and horizontal ±20 % lens shift to help align the image more easily

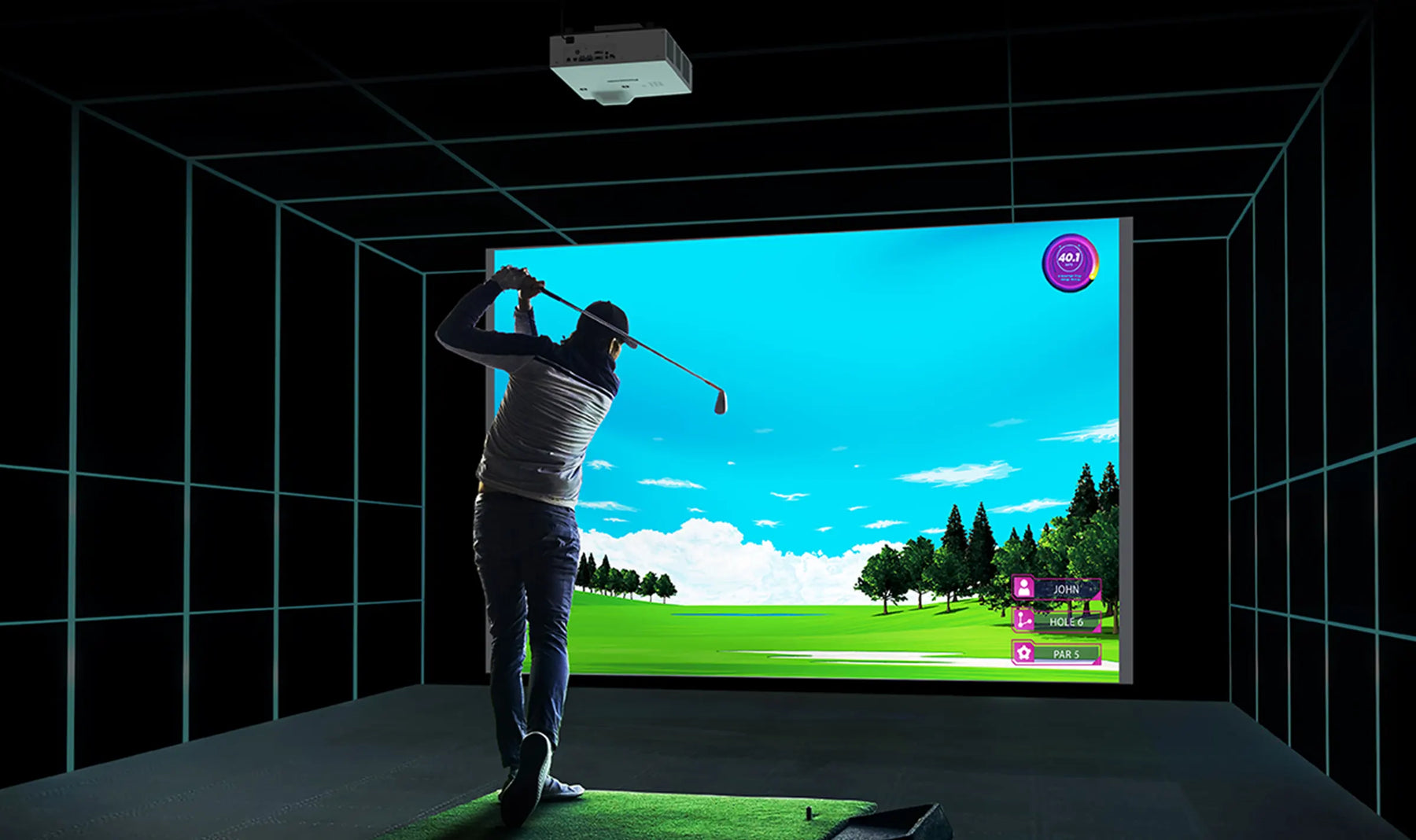

🎯 Designed for Premium Short Throw Golf Simulator Rooms
In a golf simulator, projector placement is critical. A standard throw projector often needs to be installed farther back, which can create player shadows, interfere with the hitting area or make the room harder to configure cleanly.

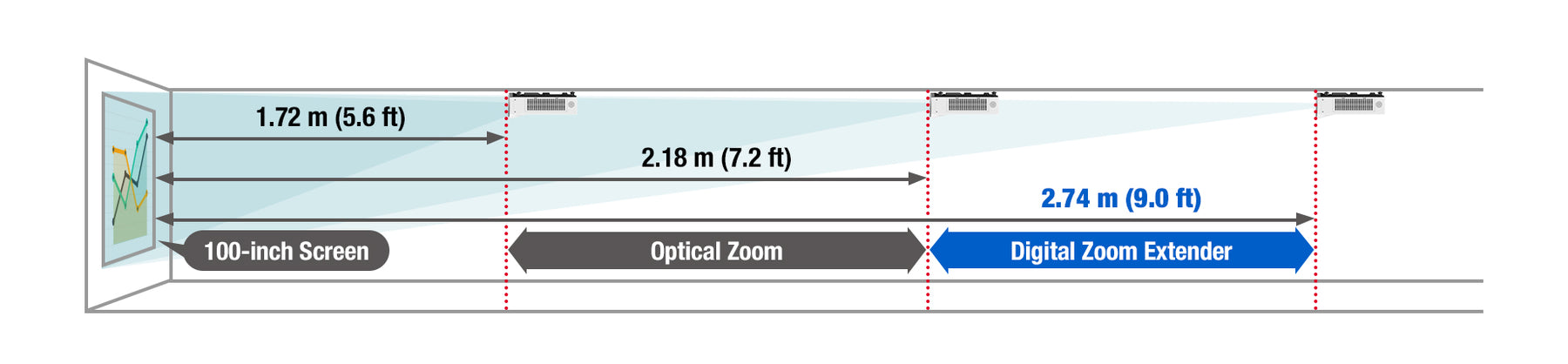

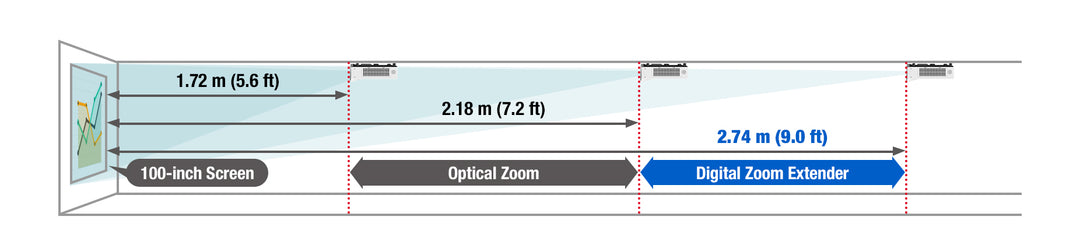

The Panasonic PT-VMZ7ST solves this with a short throw lens, allowing it to project a large image from a shorter distance. Panasonic indicates that the VMZ7ST Series can project a vivid 100-inch image from approximately 1.72 m, helping reduce shadows in compact spaces.
This model is especially suitable for premium home golf studios, professional coaching bays, golf academies and indoor sports venues that need a powerful projector with strong brightness and flexible installation.
🌿 Vivid Green Mode for Golf Simulation
The PT-VMZ7ST includes Vivid Green Mode, designed to make green tones appear brighter and more natural.
For golf simulators, this is a real advantage. Fairways, greens, trees and course environments look more vivid and easier to read on the impact screen. The result is a cleaner, more premium golf image with better visual depth.
📐 Short Throw Installation Advantage
The Panasonic PT-VMZ7ST has a 0.797-1.01:1 throw ratio, making it much more suitable for compact simulator layouts than standard throw projectors.
Its 1.2x optical zoom, powered focus, vertical and horizontal lens shift, keystone correction and screen adjustment features give installers strong flexibility when positioning the projector.
Important: even with a short throw projector, screen size, room depth, ceiling height and hitting position should always be checked before ordering.
🔌 DIGITAL LINK / HDBaseT for Clean Installations
The PT-VMZ7ST includes DIGITAL LINK / HDBaseT connectivity, allowing video, audio and control signals to be transmitted over a single compatible LAN cable.
For golf simulator installations, this is especially useful when the projector is ceiling-mounted or positioned away from the main computer. It helps reduce cable clutter and gives the room a cleaner, more professional finish.
⚙️ Product Features
- Professional short throw WUXGA LCD laser projector
- 7,000 lumens / 7,000 ANSI lumens brightness
- 5,000,000:1 dynamic contrast ratio
- Laser diode light source
- Up to 20,000 hours light source life in Normal mode
- Vivid Green Mode for golf and sports simulation
- DIGITAL LINK / HDBaseT connectivity
- 2 HDMI inputs with 4K/30p signal compatibility
- 1.2x optical zoom
- Powered focus
- Vertical and horizontal lens shift
- Digital Zoom Extender
- Keystone correction
- Quiet operation down to 27 dB in Quiet 2 mode
📊 Key Specifications
| Model | Panasonic PT-VMZ7ST |
| Projector Type | LCD laser projector |
| Display Technology | Transparent LCD panel x 3 |
| Brightness | 7,000 lumens / 7,000 ANSI lumens |
| Resolution | WUXGA 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 5,000,000:1 |
| Light Source | Laser diodes |
| Light Source Life | Up to 20,000 hours in Normal mode |
| Lens | 1.2x optical zoom, powered focus |
| Throw Ratio | 0.797-1.01:1 |
| Digital Zoom Extender Throw Ratio | 0.797-1.27:1 corresponding value |
| Lens Shift | Vertical +50 %, Horizontal ±20 % |
| Keystone Correction | Vertical ±25°, Horizontal ±35° |
| Screen Size | 70-300 inches diagonal, 16:10 aspect ratio |
| HDMI Inputs | 2x HDMI |
| 4K Signal Input | Yes, up to 4K/30p input, converted to WUXGA projection |
| DIGITAL LINK / HDBaseT | Yes |
| Network Control | LAN RJ-45 |
| Other Connections | D-sub, USB-A, Audio In/Out, RS-232C |
| Built-in Speaker | 10 W mono |
| Noise Level | 37 dB Normal / 32 dB Quiet 1 / 27 dB Quiet 2 |
| Dimensions | Approx. 414 x 120 x 424 mm, excluding protruding parts |
| Weight | Approx. 8.4 kg |
| Colour | White |
| EAN | 5025232969548 |
✅ Recommended For
- Premium indoor golf simulator rooms requiring short throw projection
- Bright home golf studios
- Golf coaching bays and academies
- Indoor sports and entertainment venues
- Professional simulator installations with DIGITAL LINK / HDBaseT requirements
- Simulator rooms where reducing player shadows is important
🏌️ Why Buy Your Golf Simulator Projector from Golf & Greens?
Choosing a projector for a golf simulator is not just about brightness. Screen width, room depth, ceiling height, hitting position, launch monitor placement and cable routing all matter.
Golf & Greens can help you check whether the Panasonic PT-VMZ7ST is the right fit for your simulator room and recommend the best projector option for your setup.
💡 Need Help Choosing the Right Projector?
Every golf simulator room is different. Before ordering, we recommend checking your screen width, available throw distance, ceiling height and installation layout.
Contact Golf & Greens with your room dimensions and we can help you choose the right projector for your golf simulator project.
❓ FAQ
Is the Panasonic PT-VMZ7ST suitable for golf simulators?
Yes. The Panasonic PT-VMZ7ST is an excellent choice for indoor golf simulator rooms, especially when short throw projection, high brightness, reduced shadows and flexible installation are important.
Is the PT-VMZ7ST a short throw projector?
Yes. The PT-VMZ7ST is a short throw projector with a throw ratio of 0.797-1.01:1, making it more suitable for compact simulator rooms than standard throw models.
How bright is the Panasonic PT-VMZ7ST?
The Panasonic PT-VMZ7ST delivers 7,000 lumens / 7,000 ANSI lumens of brightness.
What resolution does the Panasonic PT-VMZ7ST offer?
The PT-VMZ7ST offers WUXGA resolution, 1920 x 1200 pixels, with a 16:10 aspect ratio.
Does the Panasonic PT-VMZ7ST include HDBaseT?
Yes. The PT-VMZ7ST includes DIGITAL LINK / HDBaseT connectivity, making it suitable for clean professional installations with long cable runs.
Does the PT-VMZ7ST support 4K input?
Yes. The projector accepts up to 4K/30p input signals via HDMI and DIGITAL LINK. The projected image is converted to the projector’s native WUXGA resolution.
What is Vivid Green Mode?
Vivid Green Mode is a Panasonic picture mode designed to enhance green tones and improve visual impact for golf and other sports simulations.
Can this projector reduce shadows in a golf simulator room?
Yes. Because the PT-VMZ7ST is a short throw projector, it can be installed closer to the screen than standard throw models, helping reduce shadows in the hitting area.

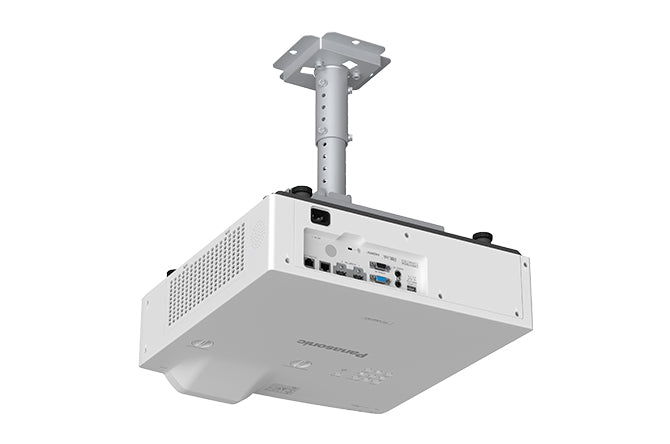

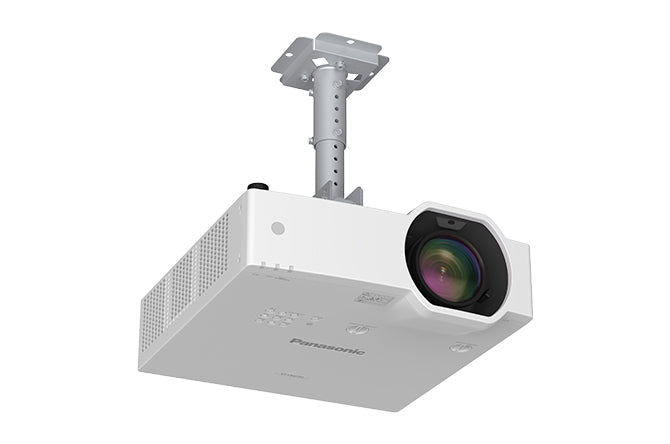

Can this projector be ceiling mounted?
Yes. The PT-VMZ7ST is suitable for ceiling-mounted installations, provided the projector distance, screen size and mounting position are correctly calculated.
Can Golf & Greens help me check if this projector fits my room?
Yes. Contact Golf & Greens with your screen size, room depth and ceiling height, and we can help you check whether this projector is suitable for your golf simulator setup.
