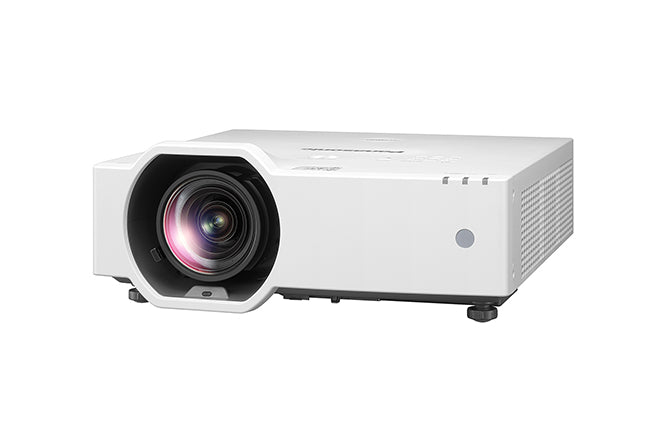

Panasonic PT-VMZ6ST WUXGA Short Throw Laser Projector for Golf Simulators
Short throw WUXGA laser projection designed for bright, compact and professional indoor golf simulator rooms.
The Panasonic PT-VMZ6ST is a professional short throw WUXGA laser projector for golf simulators, designed to deliver a bright, sharp and flexible image in indoor golf environments. With 6,200 lumens, LCD laser technology, DIGITAL LINK / HDBaseT and a short throw ratio of 0.797–1.01:1, it is an excellent choice for simulator rooms where projector placement and shadow reduction matter.
Unlike standard throw projectors, the PT-VMZ6ST can create a large image from a shorter distance, helping reduce shadows and making installation easier in golf simulator bays. Panasonic states that the VMZ7ST Series can project a vivid 100-inch image from approximately 1.72 m, making this model especially relevant for indoor golf setups where space is precious.
⛳ Why Choose the Panasonic PT-VMZ6ST?
- Short throw projection with a 0.797–1.01:1 throw ratio, ideal for many golf simulator rooms
- 6,200 lumens brightness for a clear image in indoor golf environments
- WUXGA 1920 x 1200 resolution for sharp simulator software, course visuals and launch monitor data
- LCD laser projection technology for long-lasting, low-maintenance performance
- Vivid Green Mode to enhance green tones for golf and sports simulation
- DIGITAL LINK / HDBaseT connectivity for cleaner professional installations
- 1.2x optical zoom for flexible projector positioning
- Powered focus for easier adjustment after ceiling installation
- Vertical +50 % and horizontal ±20 % lens shift to help align the image more easily
🎯 Designed for Golf Simulator Rooms with Shorter Throw Distance
In a golf simulator, projector placement is critical. If the projector is too far back, it can create player shadows, interfere with the hitting zone or become difficult to install cleanly.
The Panasonic PT-VMZ6ST solves this with a short throw lens, allowing it to project a large image from a shorter distance than standard throw models. This makes it particularly suitable for home golf studios, coaching bays, golf academies and indoor sports venues where the simulator layout needs to stay clean, practical and immersive.
🌿 Vivid Green Mode for Golf Simulation
The PT-VMZ6ST includes Vivid Green Mode, designed to make green tones appear brighter and more natural. For golf simulators, this helps improve the look of fairways, greens, trees and course environments.
On a large impact screen, this can make the simulator image feel more alive and readable, especially in bright indoor spaces where standard projection can sometimes look flat. No sad digital grass here, just cleaner fairways and greener greens.
📐 Short Throw Installation Advantage
The Panasonic PT-VMZ6ST has a 0.797–1.01:1 throw ratio, making it much more suitable for compact simulator layouts than standard throw models.
Its 1.2x optical zoom, powered focus, vertical and horizontal lens shift, keystone correction and screen adjustment features give installers strong flexibility when positioning the projector.
Important: even with a short throw projector, screen size, room depth, ceiling height and hitting position should always be checked before ordering.
🔌 DIGITAL LINK / HDBaseT for Clean Installations
The PT-VMZ6ST includes DIGITAL LINK / HDBaseT connectivity, allowing video, audio and control signals to be transmitted over a single compatible LAN cable.
For golf simulator installations, this is especially useful when the projector is ceiling-mounted or positioned away from the main computer. It helps reduce cable clutter and gives the room a cleaner, more professional finish.
⚙️ Product Features
- Professional short throw WUXGA LCD laser projector
- 6,200 lumens / 6,200 ANSI lumens brightness
- 5,000,000:1 dynamic contrast ratio
- Laser diode light source
- Up to 20,000 hours light source life in Normal mode
- Vivid Green Mode for golf and sports simulation
- DIGITAL LINK / HDBaseT connectivity
- 2 HDMI inputs with 4K/30p signal compatibility
- 1.2x optical zoom
- Powered focus
- Vertical and horizontal lens shift
- Digital Zoom Extender
- Keystone correction
- Quiet operation down to 25 dB in Quiet 2 mode
📊 Key Specifications
| Model | Panasonic PT-VMZ6ST |
| Projector Type | LCD laser projector |
| Display Technology | 3LCD, transparent LCD panel x 3 |
| Brightness | 6,200 lumens / 6,200 ANSI lumens |
| Resolution | WUXGA 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 5,000,000:1 |
| Light Source | Laser diodes |
| Light Source Life | Up to 20,000 hours in Normal / Quiet mode and 24,000 hours in Eco mode |
| Lens | 1.2x manual zoom, powered focus |
| Throw Ratio | 0.797–1.01:1 |
| Digital Zoom Extender Throw Ratio | 0.797–1.27:1 corresponding value |
| Lens Shift | Vertical +50 %, Horizontal ±20 % |
| Keystone Correction | Vertical ±25°, Horizontal ±35° |
| Screen Size | 70–300 inches diagonal, 16:10 aspect ratio |
| HDMI Inputs | 2x HDMI |
| 4K Signal Input | Yes, up to 4K/30p input, converted to WUXGA projection |
| DIGITAL LINK / HDBaseT | Yes |
| Network Control | LAN RJ-45 |
| Other Connections | D-sub, USB-A, Audio In/Out, RS-232C |
| Built-in Speaker | 10 W mono |
| Noise Level | 35 dB Normal / 30 dB Quiet 1 / 25 dB Quiet 2 |
| Dimensions | Approx. 414 x 120 x 424 mm, excluding protruding parts |
| Weight | Approx. 8.3 kg |
| Colour | White |
| EAN | 5025232969586 |
✅ Recommended For
- Indoor golf simulator rooms requiring short throw projection
- Compact home golf studios
- Golf coaching bays and academies
- Indoor sports and entertainment venues
- Professional simulator installations with DIGITAL LINK / HDBaseT requirements
- Simulator rooms where reducing shadows is important
🏌️ Why Buy Your Golf Simulator Projector from Golf & Greens?
Choosing a projector for a golf simulator is not just about brightness. Screen width, room depth, ceiling height, hitting position, launch monitor placement and cable routing all matter.
Golf & Greens can help you check whether the Panasonic PT-VMZ6ST is the right fit for your simulator room and recommend the best projector option for your setup.
💡 Need Help Choosing the Right Projector?
Every golf simulator room is different. Before ordering, we recommend checking your screen width, available throw distance, ceiling height and installation layout.
Contact Golf & Greens with your room dimensions and we can help you choose the right projector for your golf simulator project.
❓ FAQ
Is the Panasonic PT-VMZ6ST suitable for golf simulators?
Yes. The Panasonic PT-VMZ6ST is an excellent choice for indoor golf simulator rooms, especially when short throw projection, reduced shadows and flexible installation are important.
Is the PT-VMZ6ST a short throw projector?
Yes. The PT-VMZ6ST is a short throw projector with a throw ratio of 0.797–1.01:1, making it more suitable for compact simulator rooms than standard throw models.
How bright is the Panasonic PT-VMZ6ST?
The Panasonic PT-VMZ6ST delivers 6,200 lumens / 6,200 ANSI lumens of brightness.
What resolution does the Panasonic PT-VMZ6ST offer?
The PT-VMZ6ST offers WUXGA resolution, 1920 x 1200 pixels, with a 16:10 aspect ratio.
Does the Panasonic PT-VMZ6ST include HDBaseT?
Yes. The PT-VMZ6ST includes DIGITAL LINK / HDBaseT connectivity, making it suitable for clean professional installations with long cable runs.
Does the PT-VMZ6ST support 4K input?
Yes. The projector accepts up to 4K/30p input signals via HDMI and DIGITAL LINK. The projected image is converted to the projector’s native WUXGA resolution.
What is Vivid Green Mode?
Vivid Green Mode is a Panasonic picture mode designed to enhance green tones and improve visual impact for golf and other sports simulations.
Can this projector reduce shadows in a golf simulator room?
Yes. Because the PT-VMZ6ST is a short throw projector, it can be installed closer to the screen than standard throw models, helping reduce shadows in the hitting area.
Can this projector be ceiling mounted?
Yes. The PT-VMZ6ST is suitable for ceiling-mounted installations, provided the projector distance, screen size and mounting position are correctly calculated.
Can Golf & Greens help me check if this projector fits my room?
Yes. Contact Golf & Greens with your screen size, room depth and ceiling height, and we can help you check whether this projector is suitable for your golf simulator setup.
