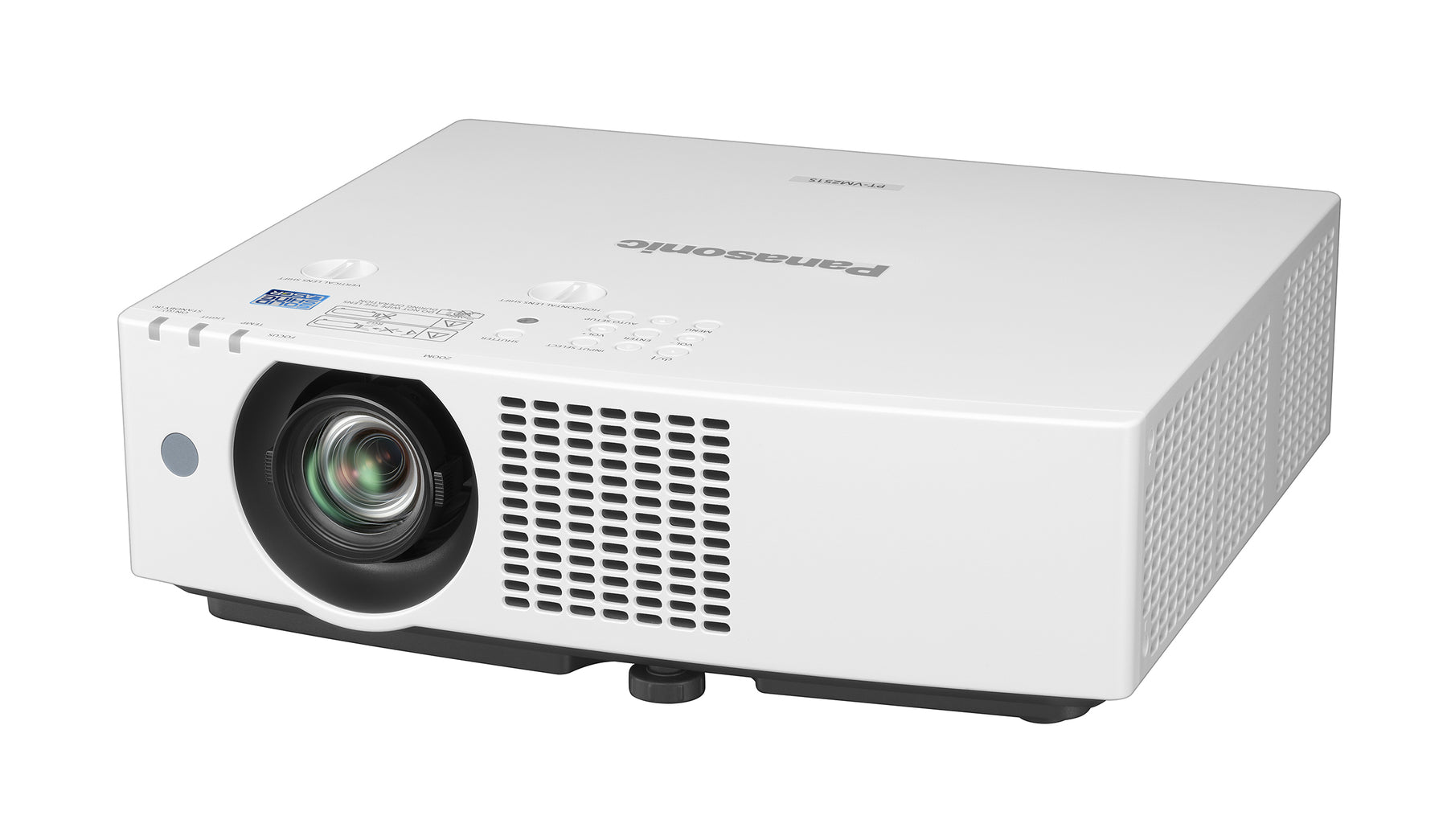

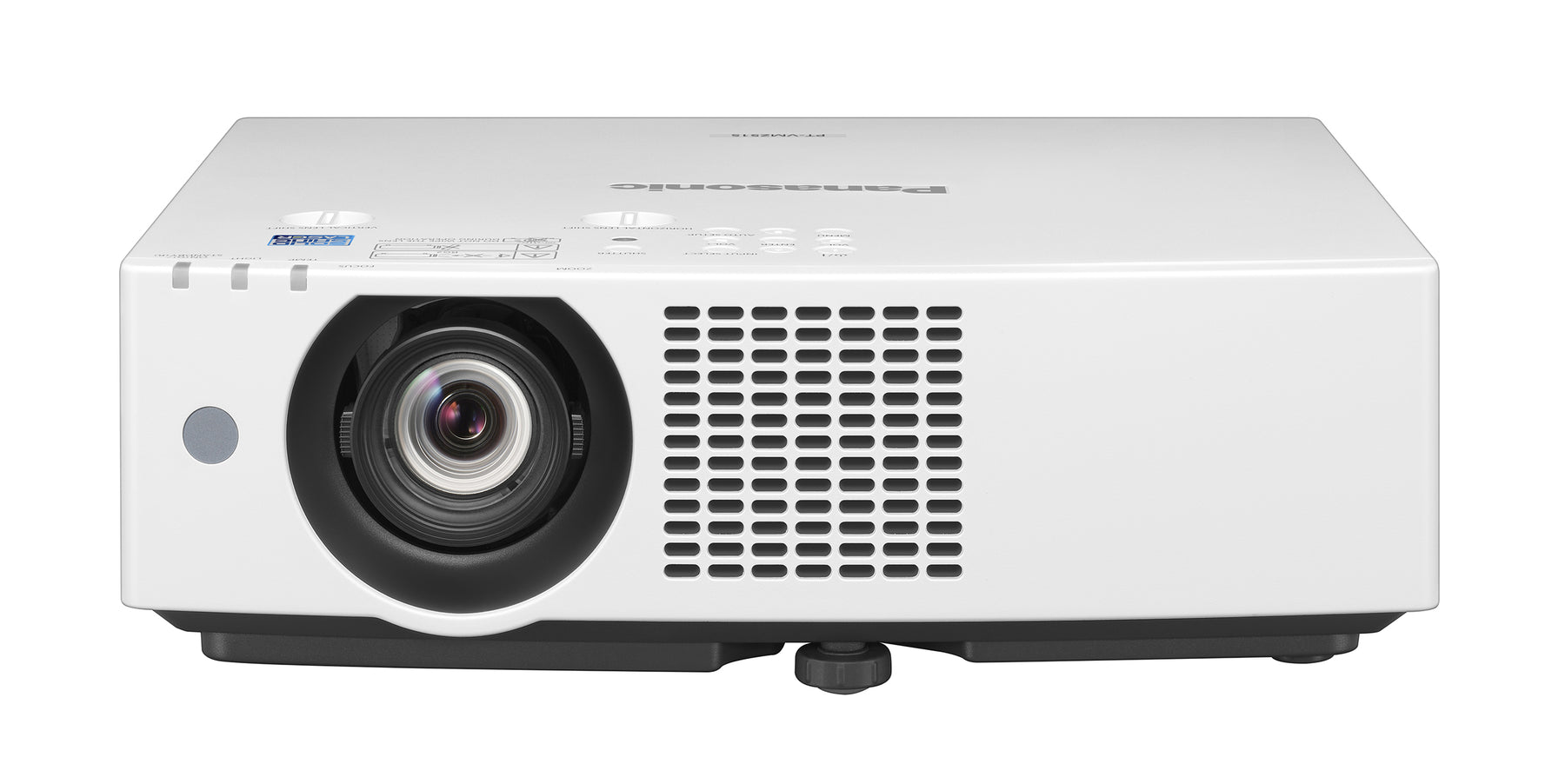

Panasonic PT-VMZ51S WUXGA - Laser Projector for Golf Simulators
Business customer? Order VAT-free.
If you hold a valid EU VAT number, enter it directly in your cart to apply the tax exemption. Any questions? Contact us →
Bright, reliable and professional WUXGA laser projection for indoor golf simulator rooms.
The Panasonic PT-VMZ51S is a professional WUXGA laser projector delivering a bright, sharp and stable image for indoor golf. With 5,200 lumens, LCD laser technology and flexible installation features, it is a strong, value-focused choice for home golf rooms, coaching bays, academies and indoor sports facilities with enough room depth.
⛳ Why Choose the Panasonic PT-VMZ51S?
- 5,200 lumens for clear projection in indoor golf rooms
- WUXGA 1920 × 1200 resolution for sharp course visuals and data
- Laser light source for long-lasting, low-maintenance performance

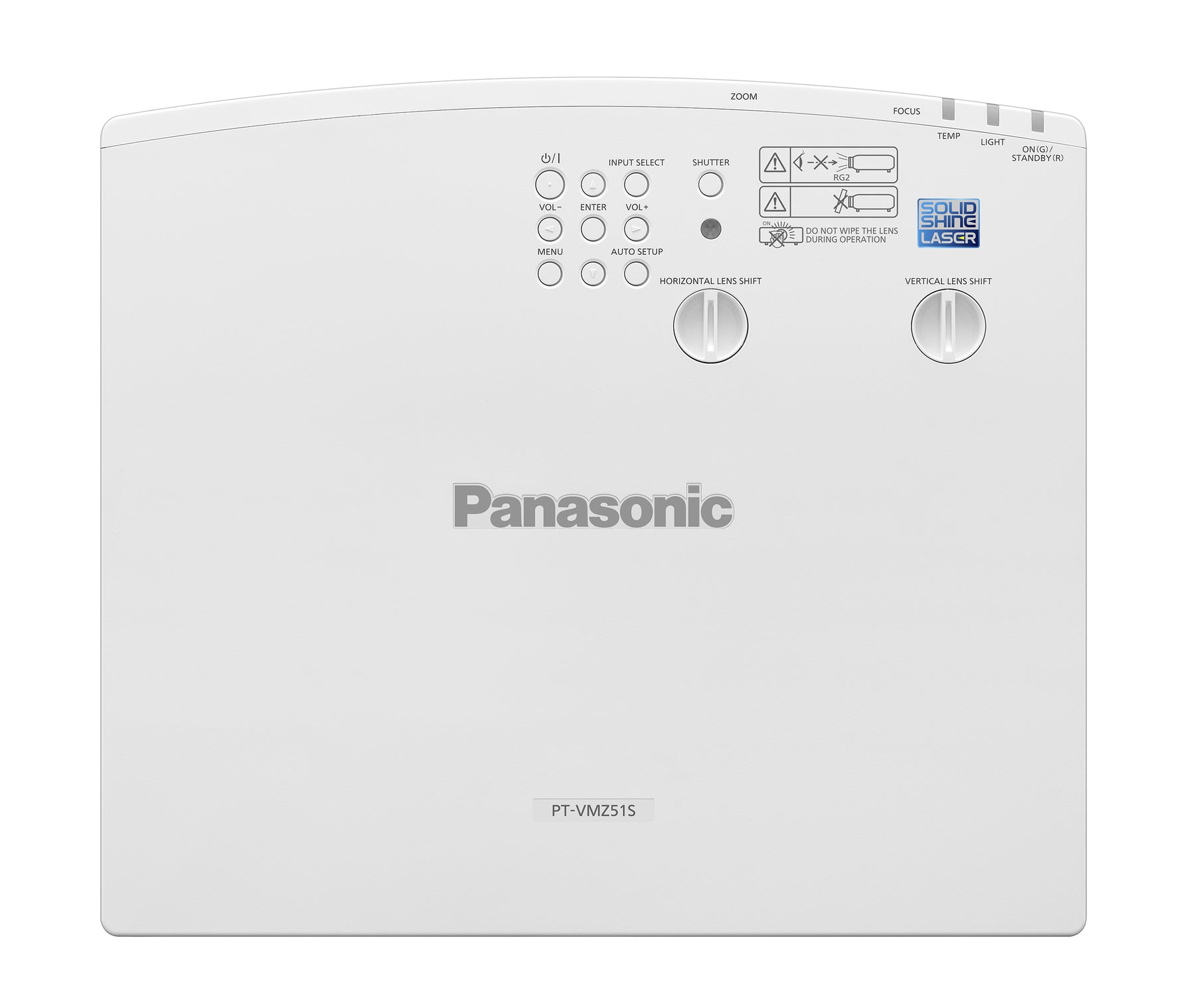

- 1.6x manual zoom with vertical and horizontal lens shift
- 2 HDMI inputs and LAN control for clean integration
- Compact 6.5 kg design, ideal for ceiling mounting
🎯 Built for Indoor Golf Simulator Projects
A golf simulator projector must provide enough brightness, accurate detail and reliable performance over time. The PT-VMZ51S combines 5,200 lumens, WUXGA resolution and a laser light source to deliver a clean, immersive image for simulator software, virtual courses, driving ranges and launch monitor data.
🎯 WUXGA Clarity for Simulator Data
WUXGA 1920 × 1200 resolution keeps course visuals, simulator interfaces and shot data sharp across large impact screens, while the laser light source keeps maintenance low over years of use.
📐 Installation and Room Fit
The Panasonic PT-VMZ51S is not a short-throw projector. It has a standard 1.09–1.77:1 throw ratio, so it is best suited to simulator rooms with enough distance between the projector and the impact screen. Its 1.6x manual zoom and vertical +44% and horizontal ± 20% lens shift give useful installation flexibility, but projector distance, screen size and ceiling height should always be checked before ordering.
Not sure it fits your simulator room? Contact Golf and Greens and we can validate the projector position based on your screen size, room depth, ceiling height and simulator layout.
⚙️ Product Features
- Professional WUXGA LCD laser projector
- 5,200-lumen brightness
- Manual zoom and focus with lens shift
- HDMI and LAN connectivity
- Compact, lightweight body for ceiling or floor installation
- Designed for long-term professional use
📊 Key Specifications
| Model | Panasonic PT-VMZ51S |
| Projector type | LCD laser projector |
| Resolution | WUXGA 1920 × 1200 (16:10) |
| Brightness | 5,200 lumens |
| Contrast ratio | 3,000,000:1 |
| Light source | Laser diodes |
| Light source life | Up to 20,000 hours (Normal) / 24,000 hours (Eco) |
| Throw ratio | 1.09–1.77:1 |
| Optical zoom | 1.6x manual zoom |
| Lens shift | vertical +44% and horizontal ± 20% |
| Screen size | 30–300 inches diagonal |
| HDMI inputs | 2 x HDMI, up to 4K/30p input |
| DIGITAL LINK / HDBaseT | No |
| Network control | LAN RJ-45 |
| Noise level | 36 dB Normal / 26 dB Quiet |
| Dimensions | 399 × 133 × 348 mm |
| Weight | Approx. 6.5 kg |
| Colour | White |

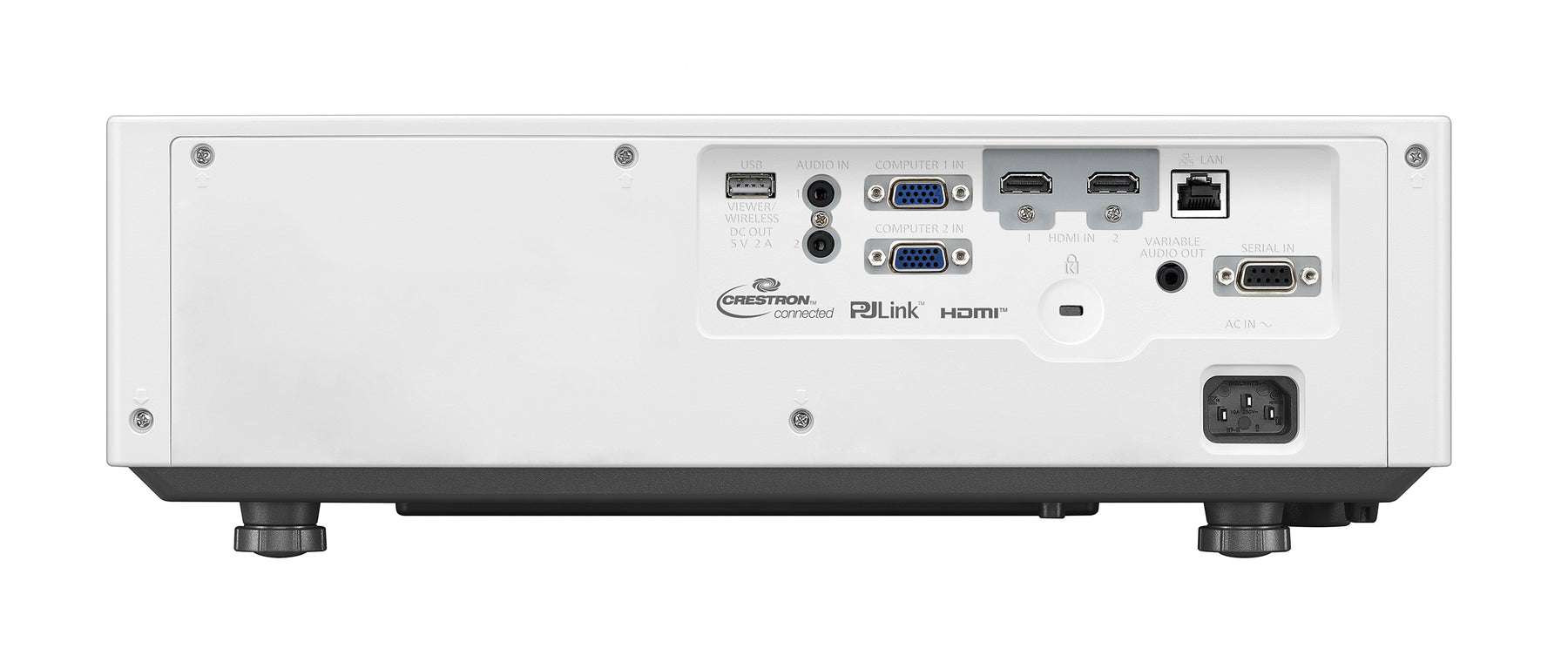

| Other connections | 2 x D-sub, USB-A, Audio In/Out, RS-232C |
| Aspect ratio | 16:10 |
✅ Recommended For
- Indoor golf simulator rooms with medium throw distance
- Home golf studios and coaching bays
- Golf academies and indoor sports venues
- Professional simulator installations
🏌️ Why Buy Your Golf Simulator Projector from Golf and Greens?
A projector can meet every specification on paper and still be wrong for the room. Screen width, screen height, image ratio, ceiling height, enclosure depth, hitting position, ambient light and cable routing all shape the final result. Golf and Greens can help you match the Panasonic PT-VMZ51S with the right impact screen, golf simulator enclosure, mount and cabling for a coherent indoor golf setup.
- Specialist advice for home and commercial golf simulator projects
- Throw-distance and mounting-position guidance
- Compatibility checks based on your room and screen dimensions
- Support in English and French, with European delivery
Explore the full golf simulator projector collection.
💡 Need Help Choosing the Right Projector?
Every golf simulator room is different. Before ordering, check your screen width, available throw distance, ceiling height and installation layout. Contact Golf and Greens with your room dimensions and we will help you choose the right projector for your golf simulator project.
❓ Frequently Asked Questions
Is the Panasonic PT-VMZ51S suitable for golf simulators?
Yes, especially when the room has enough distance between the projector and the impact screen.
Is it a short-throw projector?
No. It has a 1.09–1.77:1 throw ratio, so it suits rooms with medium throw distance.
Does it include HDBaseT?
No. This model uses HDMI and LAN connectivity rather than DIGITAL LINK / HDBaseT.
How bright is it?
The PT-VMZ51S delivers 5,200 lumens at WUXGA 1920 × 1200 resolution.
Can Golf and Greens check if it fits my room?
Yes. Send your screen size, room depth and ceiling height and we will confirm suitability.
