Bravo BV31 Golf Launch Monitor

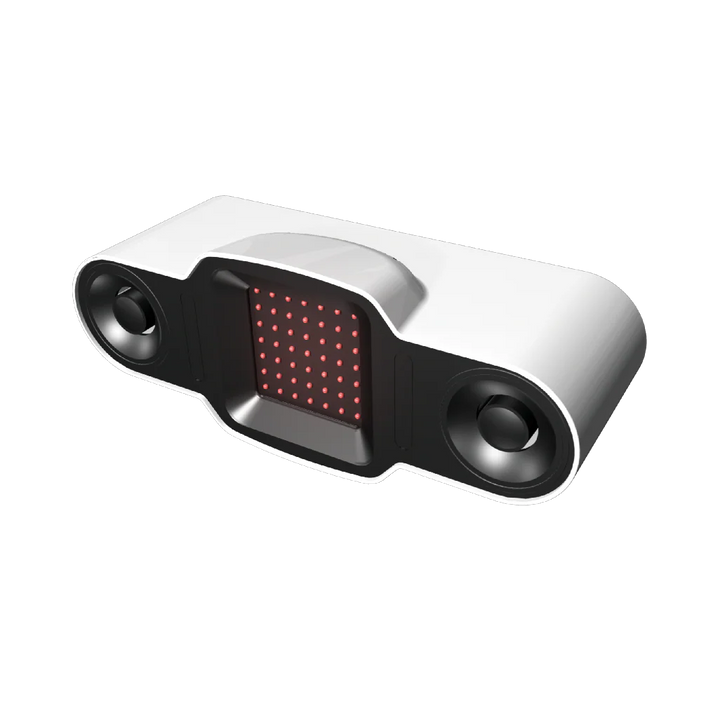

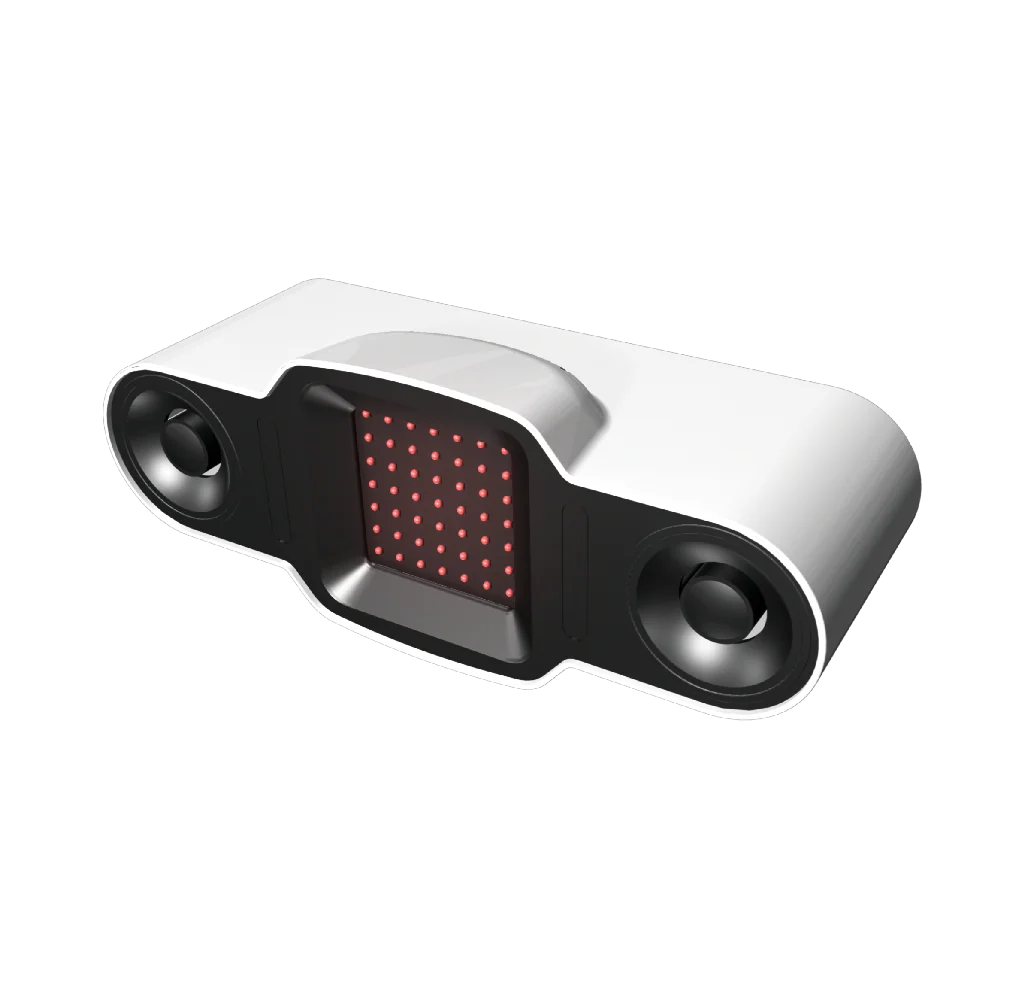

🎯 Bravo BV31 Golf Launch Monitor is a ceiling-mounted indoor golf sensor system built around high-speed camera and stereo vision technology. Bravo states that the BV31 tracks ball flight in three dimensions and delivers measurement accuracy of up to 99.99%. The overhead position keeps the hitting area clear and allows the same sensor to be used by both right- and left-handed golfers.
📸 Stereo Vision Ball & Club Tracking

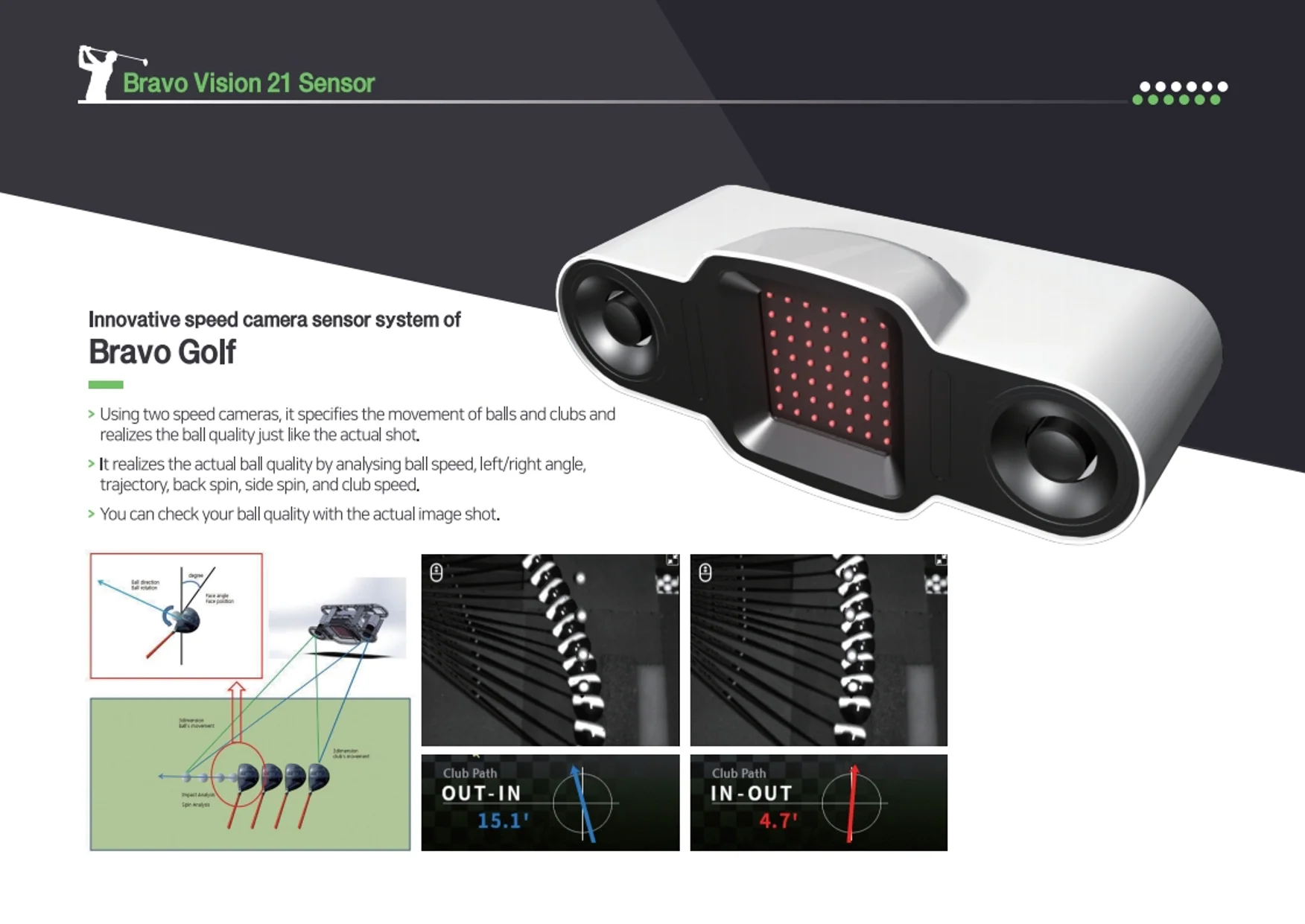

The BV31 uses a high-speed three-dimensional vision analysis method rather than a conventional frame-based rotation calculation system. Bravo describes the technology as a stereo vision system using two cameras to analyse the golf ball and club.
- Ceiling-mounted indoor sensor
- High-speed stereo vision analysis
- Ball and club measurement
- No marked ball required
- One centred system for right- and left-handed golfers
📊 Measured Data
Bravo publishes the following recognition ranges and tolerances for the BV sensor family. Their applicability to the supplied BV31 has not been verified and should be confirmed with the supplier:
| Measurement | Recognition range | Published tolerance |
|---|---|---|
| Ball speed | 0–400 km/h | 2 km/h |
| Azimuth | -90° to +90° | 0.5° |
| Trajectory / launch angle | 0°–90° | 0.2° |
| Backspin | 0–16,000 rpm | 200 rpm |
| Sidespin | -3,000 to +3,000 rpm | 20 rpm |
| Club speed | 0–300 km/h | 5 km/h |

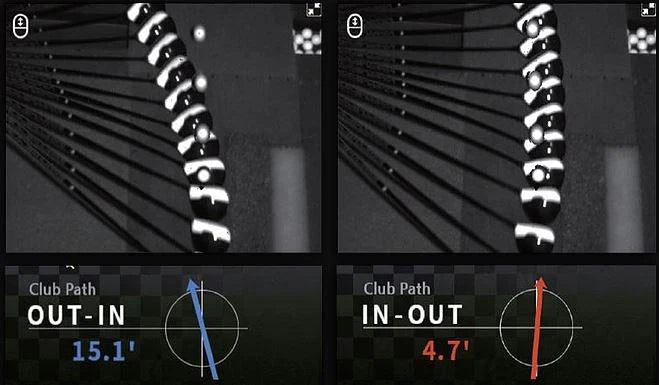

Bravo also lists club path analysis for the BV system in its comparison with the Bravo Spin sensor.
⚪ No Marked Balls Required
The BV system does not require a marked ball. This makes it practical for simulator rooms where players want to use standard golf balls without preparing or aligning a special marking pattern.
↔️ Right- & Left-Handed Play
Bravo specifies the BV sensor as a centred ceiling-mounted system that supports both right- and left-handed golfers with a single sensor installation. There is no need to move the launch monitor when players change sides.
📐 Installation Requirements
Bravo publishes the following guidance for BV installation. The exact positioning and dimensions required for the supplied BV31 have not been verified and should be confirmed with the supplier:
- Ceiling height: approximately 2.75–3.00 m from the turf
- Recommended simulator space: more than 4 m wide × 3 m high × 7 m long
- Camera position: approximately 1.5 m behind the tee position
- Camera centre height: approximately 2.7 m
- Location: ceiling-mounted, primarily for indoor use
Actual installation requirements can vary with the room, screen, projector, player position and complete simulator configuration. Contact Golf and Greens Europe with your room dimensions before ordering if you would like us to check the layout.
💻 Bravo Golf Simulator Software

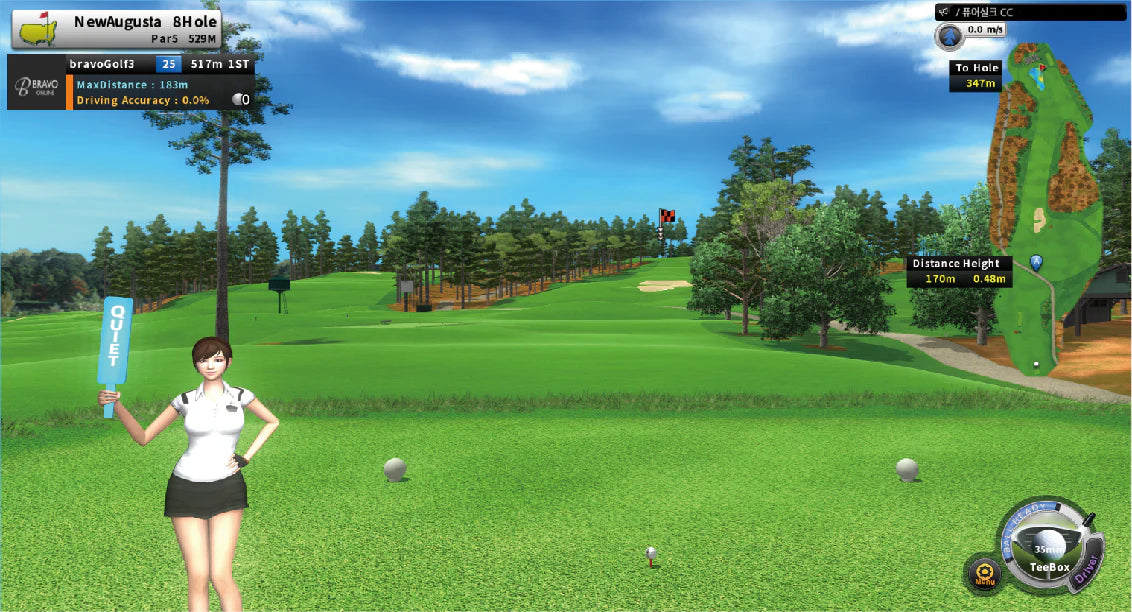

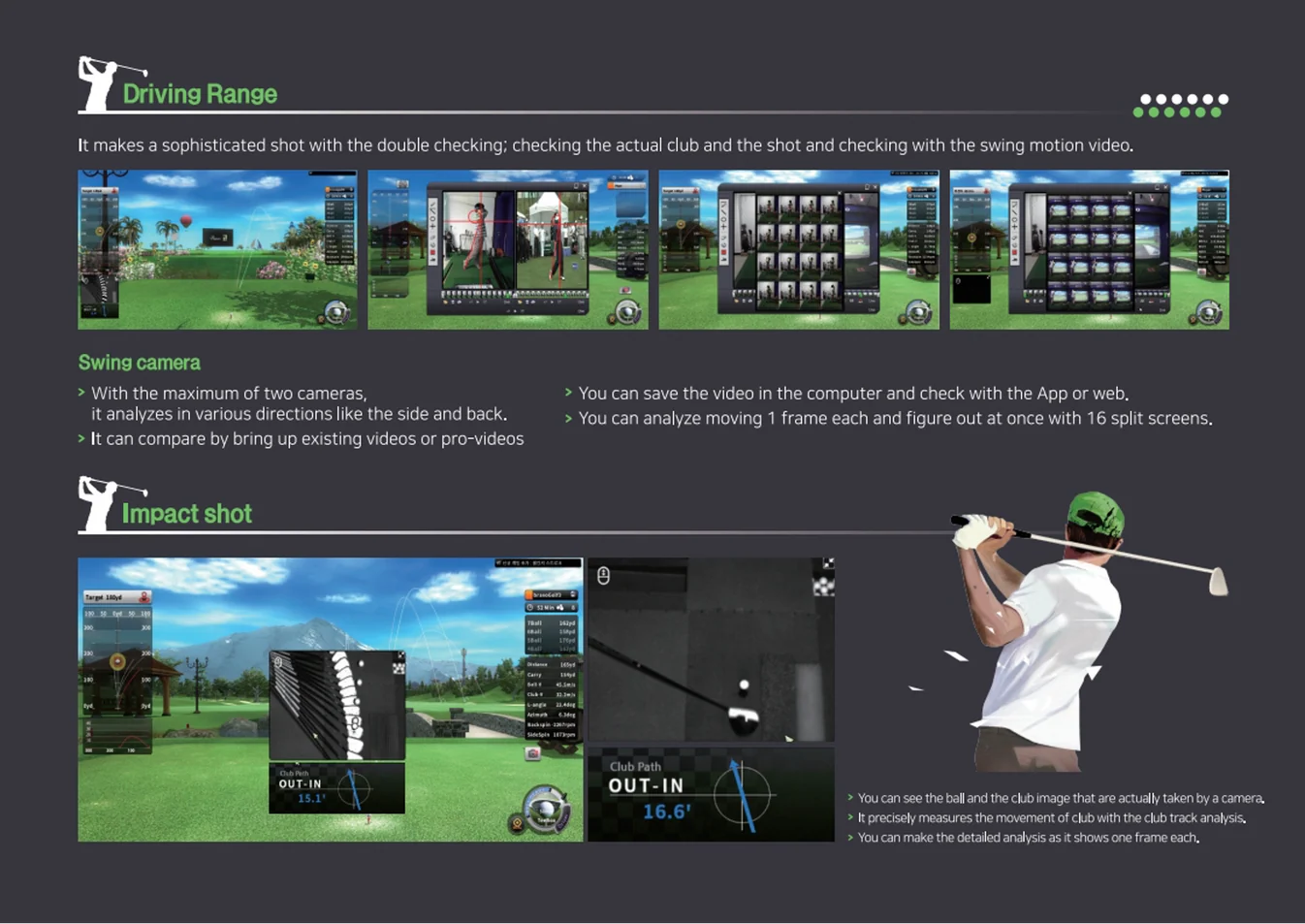

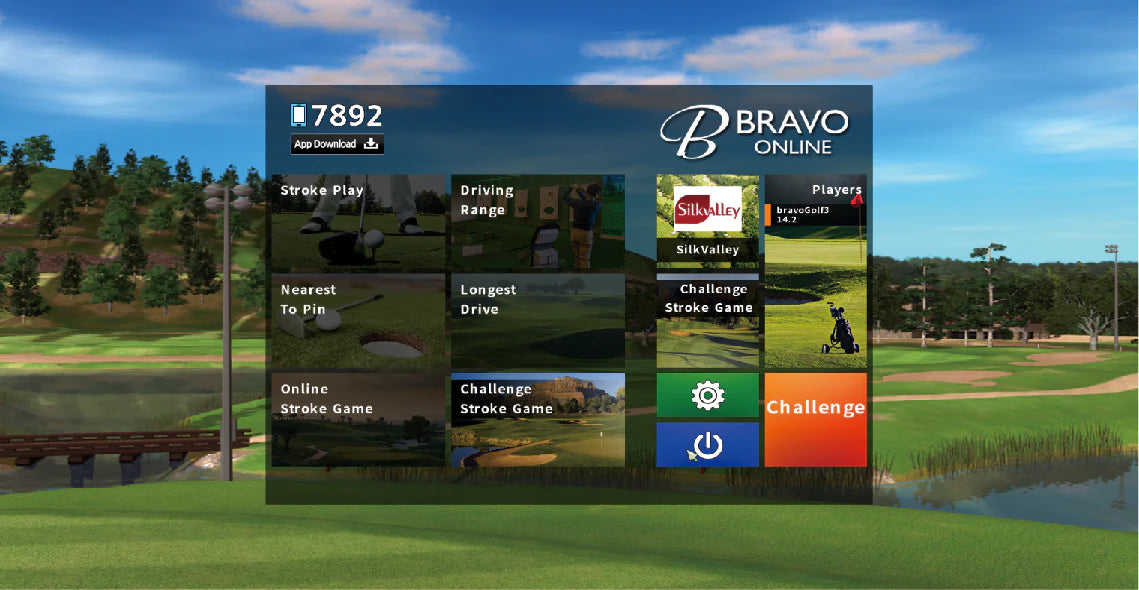

This Bravo BV31 package is supplied with Bravo Golf simulator software. Bravo's software environment offers virtual golf courses and practice functions, including a driving range and swing analysis.
The exact software version, course package, licence terms and optional content supplied with this configuration should be confirmed before ordering.
📦 Package Contents
Bravo offers several BV configurations with different software and simulator content packages. Because the exact hardware accessories and software licences can differ by package, please contact Golf and Greens Europe before ordering if you need confirmation of the precise items included with this listing.
🏠 Designed for Indoor Golf
The BV31 is designed for indoor golf simulator installations, including private simulator rooms, coaching environments and commercial golf bays. Its ceiling position leaves the hitting area clear while supporting play from both sides.
✅ Why Buy from Golf and Greens Europe?
- Specialist advice for indoor golf simulator projects
- Help checking room dimensions and sensor positioning
- Support with projector, impact screen, PC and simulator configuration
- Turnkey simulator installation available for suitable projects
❓ Frequently Asked Questions
Does the Bravo BV31 need marked golf balls?
No. Bravo states that the BV system does not require marked balls.
Can right- and left-handed golfers use the same sensor?
Yes. Bravo specifies one centred BV system for both right- and left-handed golfers.
Where is the BV31 installed?
The BV system is ceiling-mounted. The exact mounting position and height for the supplied BV31 should be confirmed with the supplier before installation.
What does the BV31 measure?
Bravo publishes ball speed, azimuth, trajectory, backspin, sidespin and club speed, and also lists club path analysis for the BV system.
Which simulator software is supplied?
The BV31 offered by Golf and Greens Europe is supplied with Bravo Golf simulator software. Contact us to confirm the software version, course package and licence terms for your configuration.
What warranty is included?
Warranty terms can depend on the supplied configuration and market. Please contact Golf and Greens Europe before ordering if you need confirmation of the applicable warranty for this product.
📩 Need Help Planning Your Bravo Installation?
Send us your room dimensions, ceiling height, plans or photos and we can help review the layout for your Bravo BV31 installation.
