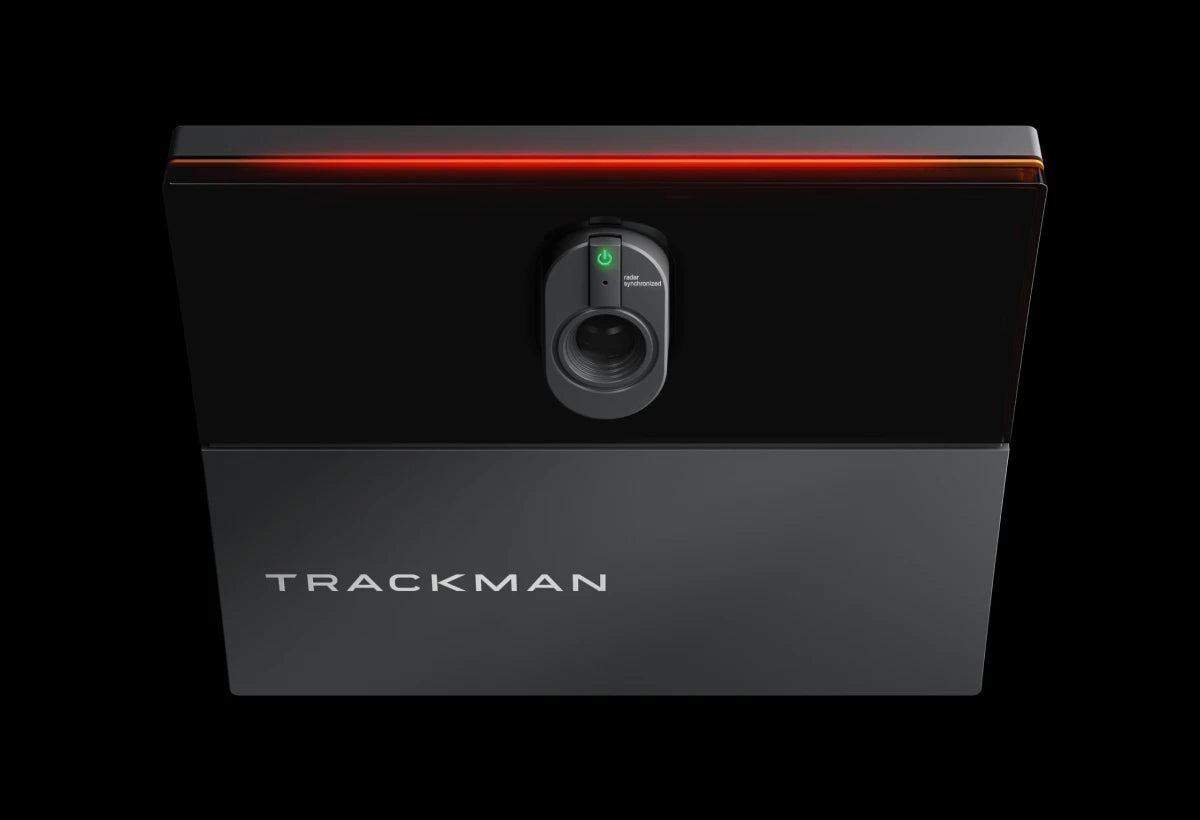

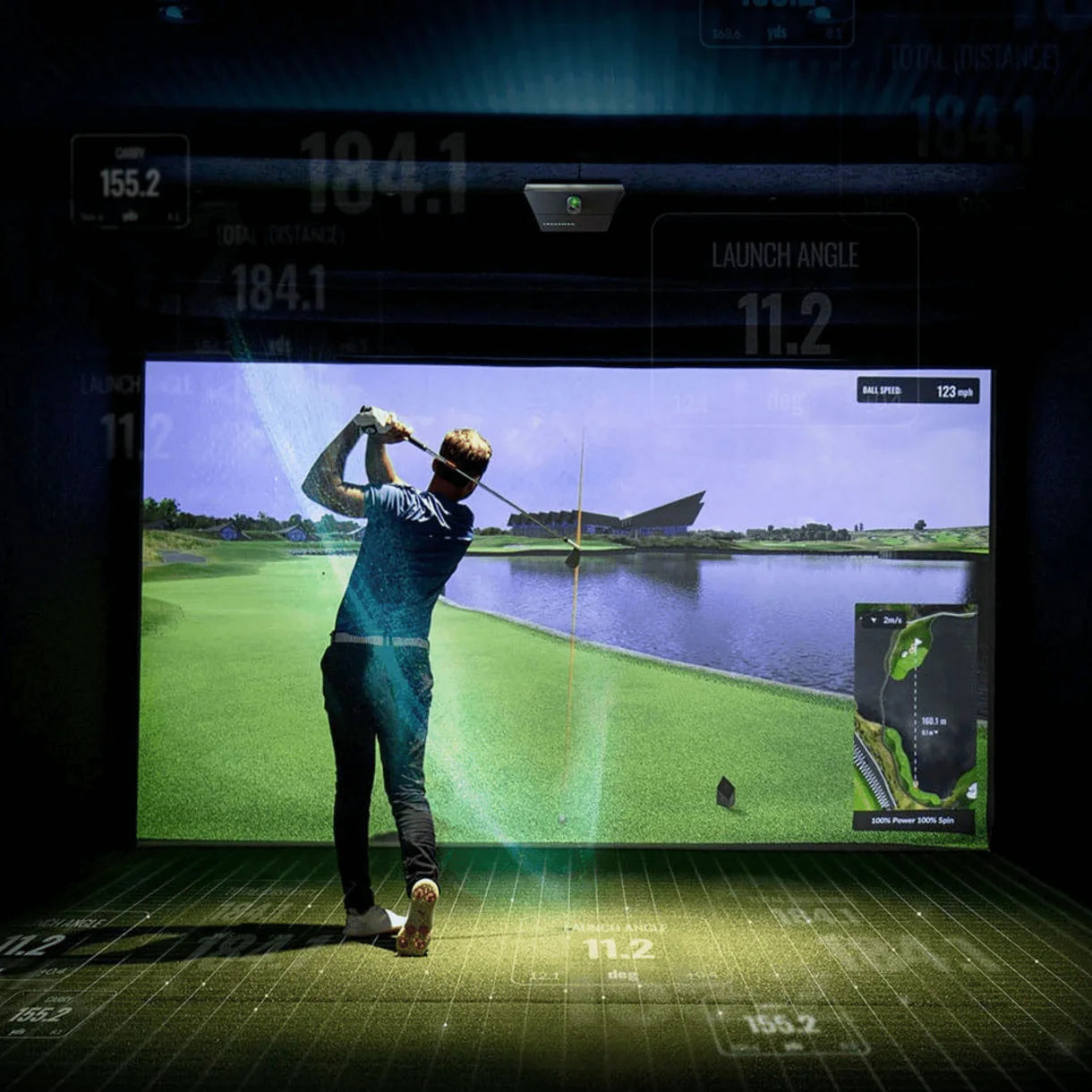

Trackman iO is a ceiling-mounted indoor golf launch monitor designed for permanent home and commercial golf simulator installations. It combines Optically Enhanced Radar Tracking (OERT), high-speed optical tracking and embedded infrared lighting to measure ball and club performance without markers on the ball or club.
🎯 Key Features
-
Indoor-optimised ceiling-mounted design with no floor-mounted launch monitor.
-
24 GHz radar for speed and distance measurement.
-
High-speed tracking camera up to 4,600 fps for club and ball tracking.
-
Dedicated alignment camera for automatic target alignment.
- Directly measured 3D spin and spin axis.
-
Embedded infrared lighting with no external tracking lights required.
- No ball or club markers required.
- Simulator putting.
📊 Ball & Club Data
Ball Data – 14 Parameters
- Ball Speed
- Launch Angle
- Launch Direction
- Spin Rate
- Spin Axis
- Hang Time
- Height
- Curve
- Landing Angle
- Carry
- Side
- Total
- Side Total
- Smash Factor
Trackman iO Home Club Data
Trackman iO Commercial Club Data
Trackman lists the following 9 club parameters for Home Complete and Commercial configurations:
- Club Speed
- Face Angle
- Club Path
- Face to Path
- Impact Height
- Impact Offset
- Dynamic Loft
- Spin Loft
- Attack Angle
Golf and Greens currently labels the commercial Shopify variant “Commercial Complete”; Trackman’s current official naming is “Commercial”.
🖥️ Software
Trackman iO Home
- Trackman Performance Studio + Virtual Golf
- 14/14 ball parameters
- Club Speed
- 70 courses
- 4 games
- Range + Target Practice
- On-Course Practice
- Tournaments + Online Play
- First year of Home software included; Trackman currently lists renewal at USD 700/year
Trackman iO Commercial
For commercial facilities, Trackman provides a dedicated commercial software and licence configuration. Available software content and pricing should be confirmed for the selected facility and licence at the time of order.
📐 Installation & Room Requirements
-
LOW calibration: 270–290 cm
-
MID calibration: 285–305 cm
-
HIGH calibration: 300–320 cm
-
Tee to impact screen: minimum 250 cm
-
Recommended tee-to-screen distance: 300 cm or more
-
Minimum hitting surface around the tee: approx. 180 × 150 cm
-
Trackman iO tee area: 60 × 40 cm
Trackman iO itself does not require a minimum ball-flight tracking distance, but the room must still provide sufficient clearance for a safe golf swing and impact screen.
💻 PC Requirements
-
Operating system: Windows 11, 64-bit
-
Memory: 32 GB RAM
-
Processor: Intel Core i7 with minimum 3.4 GHz boost speed, or Intel Core Ultra 7
-
HD graphics: NVIDIA RTX 4070 Ti, RTX 4070 Ti Super, RTX 5070 Ti or higher
-
4K graphics: NVIDIA RTX 4080, RTX 4080 Super, RTX 4090, RTX 5080 or RTX 5090
-
Storage: 1 TB SSD
-
Network: two 1 Gbit/s Ethernet ports
A compatible Windows gaming PC is required and is not included with the Trackman iO.
📦 What’s Included
- Trackman iO with protective foil and mounting plate
- Ceiling bracket attached to Trackman iO
- Calibration board
- Country-specific power cable and power adapter
- Flashlight
- 4 × M6 12 mm screws for a VESA 100 × 100 mount + 2 spare screws
- Tee
- Tee marker
- USB stick with safety information, installation instructions and software
- 3 × AAA batteries
- Box contents and safety instructions
🚫 Not Included
- Compatible gaming PC
- Projector
- Impact screen or golf net
- Simulator enclosure and protective padding
- Hitting mat and surrounding turf
- Shielded Cat6 Ethernet cable
- Ceiling-specific screws and anchors
- Optional VESA mount / drop pole
- Installation services
📏 Technical Specifications
-

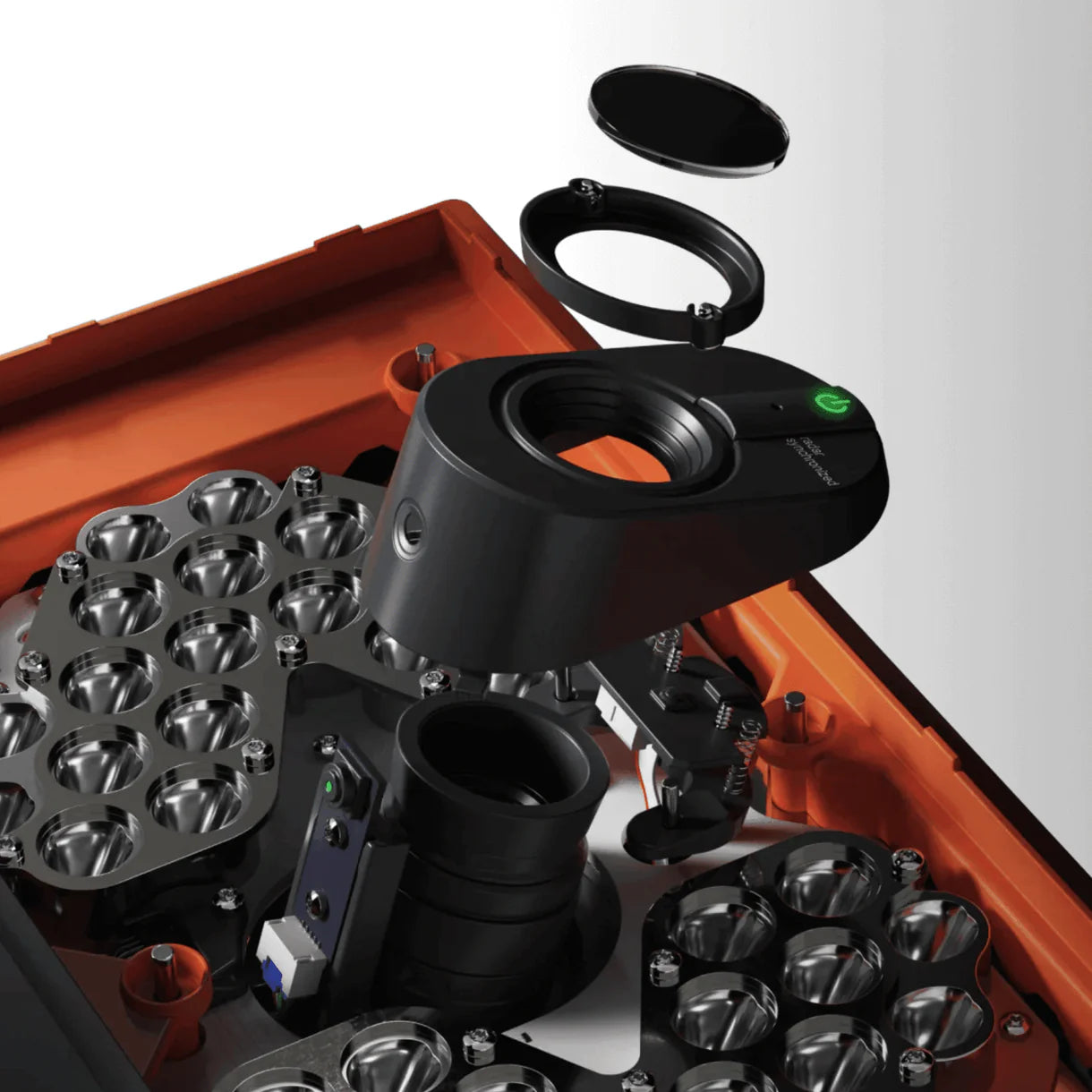

Tracking: Optically Enhanced Radar Tracking (OERT)
-
Radar: 24 GHz
-

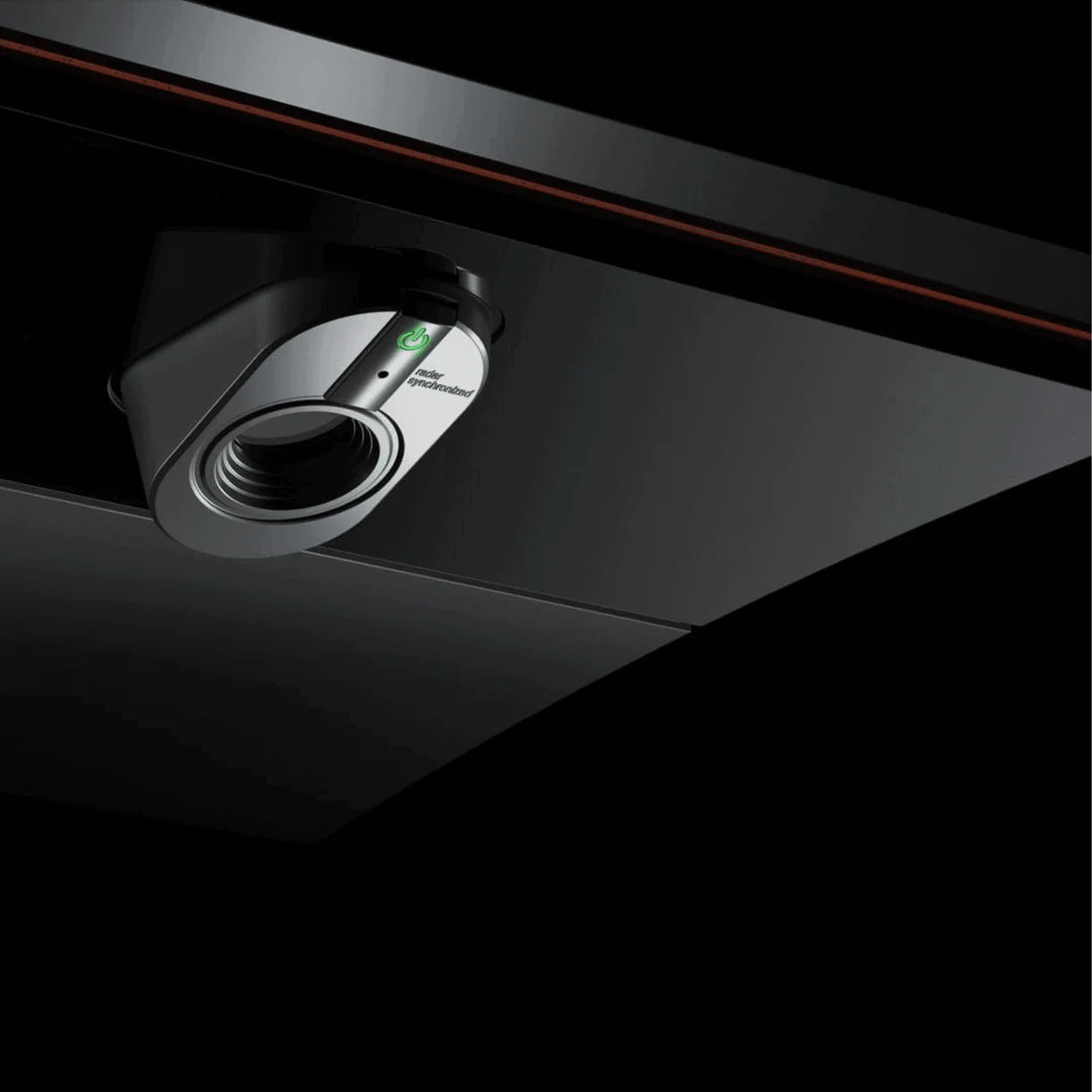

Cameras: high-speed tracking camera up to 4,600 fps + dedicated alignment camera
-
Lighting: embedded infrared lighting
-
Connection: Ethernet 10/100/1000 Mbps, RJ45
-
Dimensions: 333 × 333 × 107 mm
-
Weight: 3.9 kg
❓ Frequently Asked Questions
Which version should I choose?
Choose Trackman iO Home for a private residential simulator. For a revenue-generating facility, club, academy, hotel or other commercial venue, choose the commercial Trackman configuration.
Does Trackman iO require marked balls or club stickers?
No. Trackman iO does not require markers on the ball or club.
Can Trackman iO be used outdoors?
No. Trackman iO is designed for indoor simulator use.
Is installation included?
No. Installation labour is separate. Golf and Greens offers remote setup and can quote on-site installation.
Is Trackman iO a complete simulator?
No. A complete simulator also requires a compatible PC, projector or display, impact screen or net, hitting mat and other room components.
🔗 Complete Your Trackman iO Setup
Complete your simulator with a compatible golf simulator projector, impact screen, golf simulator enclosure, hitting mat or our 2-hour remote setup service.
